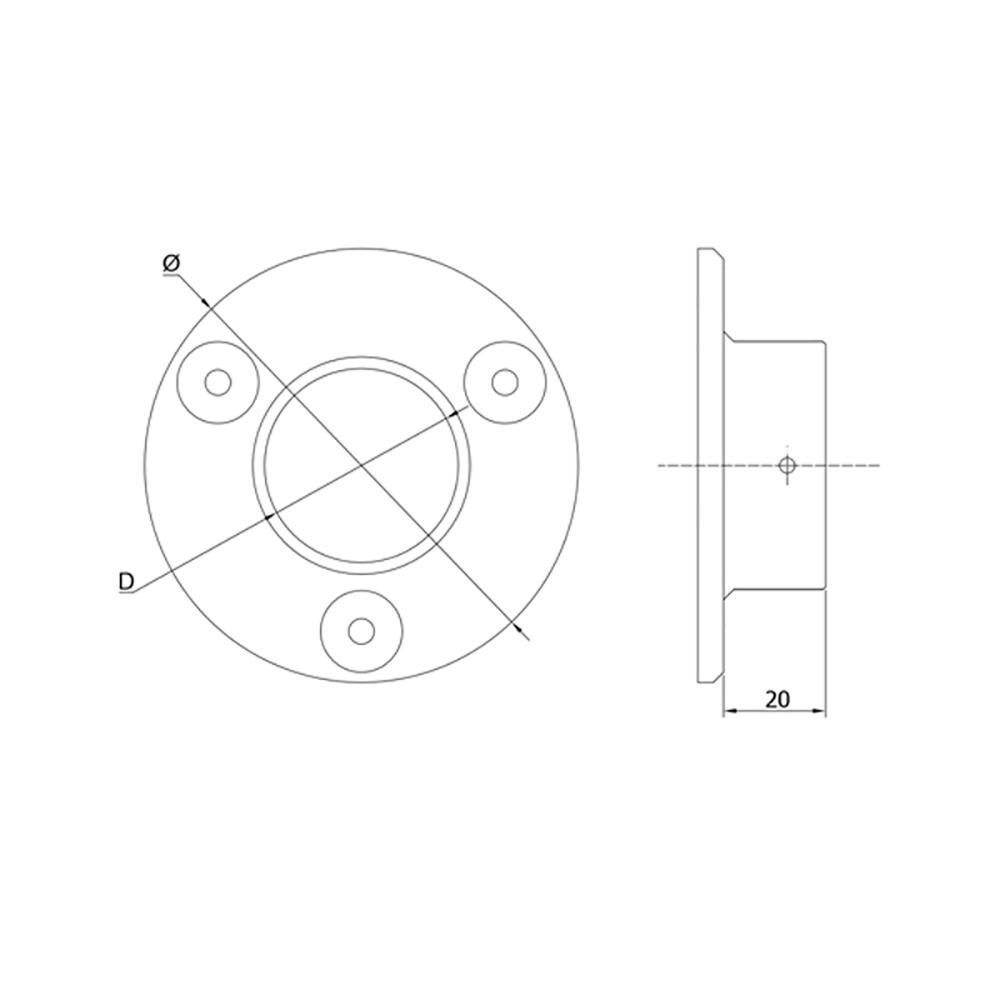

Wall Mount Flange for 42.4 mm Round Rail

Description

• AX10.008.140.A.SP
• Fits 42.4 mm (1-2/3 in.) diameter round tube handrail
• This is for when a handrail needs to terminate into a wall.

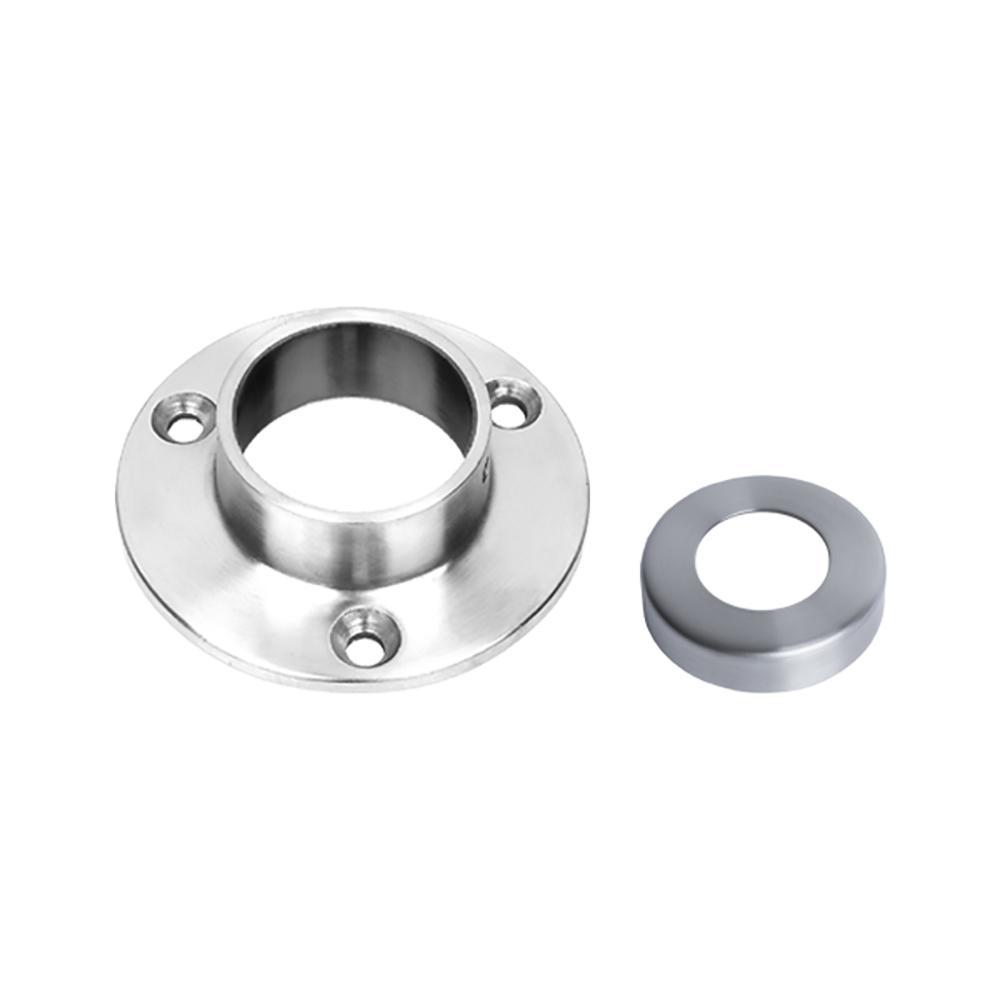

• Wall Mount Flange – Flange Cover Included
• 304 Stainless Steel – 240 grain satin polish
• Wood Screws required – sold separately – Part # AX00.091.820.A.SP

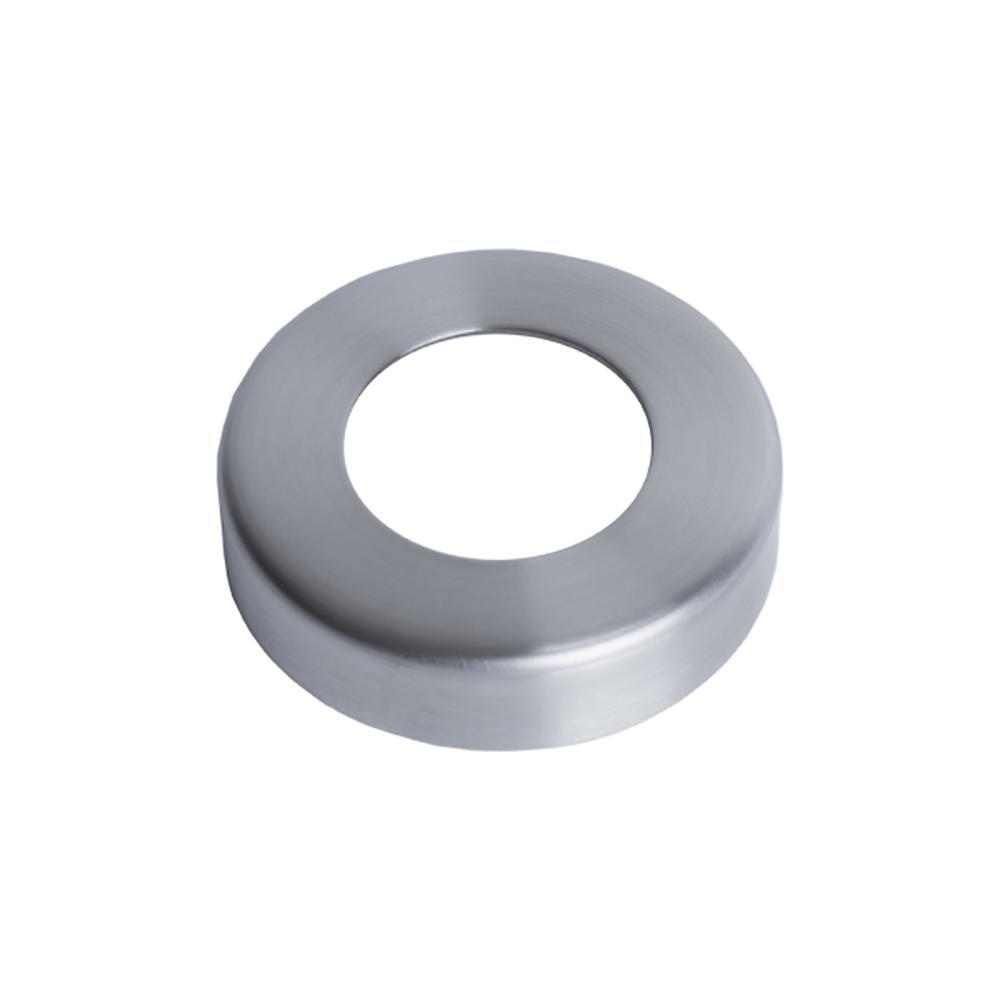

Specs for Replacement Flange Cover

• AX10.008.139.A.SP
• Inside Diameter – 51 mm
• Outside Diameter – 89.7 mm
• Height – 18.5 mm
• 304 Stainless Steel – 240 grain satin polish
