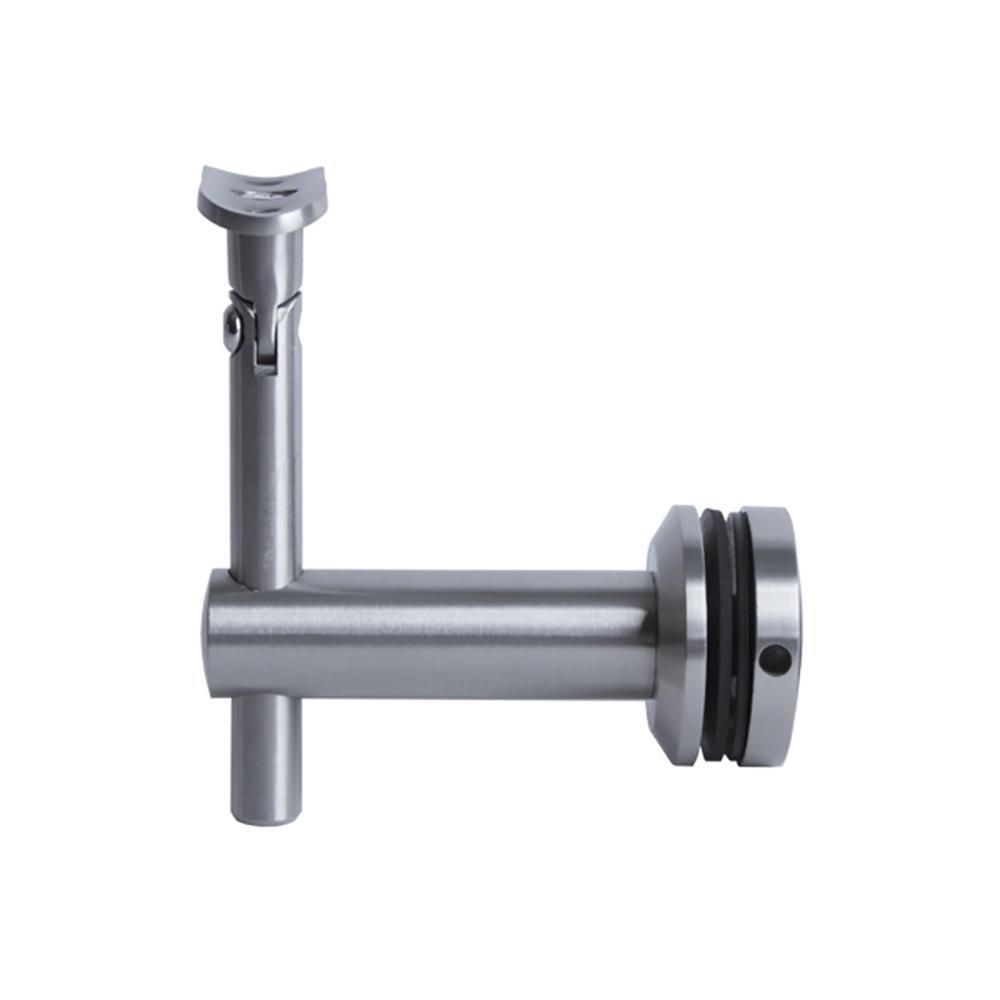

Glass Handrail Support Bracket for 42.4 mm Round Rail

Description

• AX10.033.024.A.SP

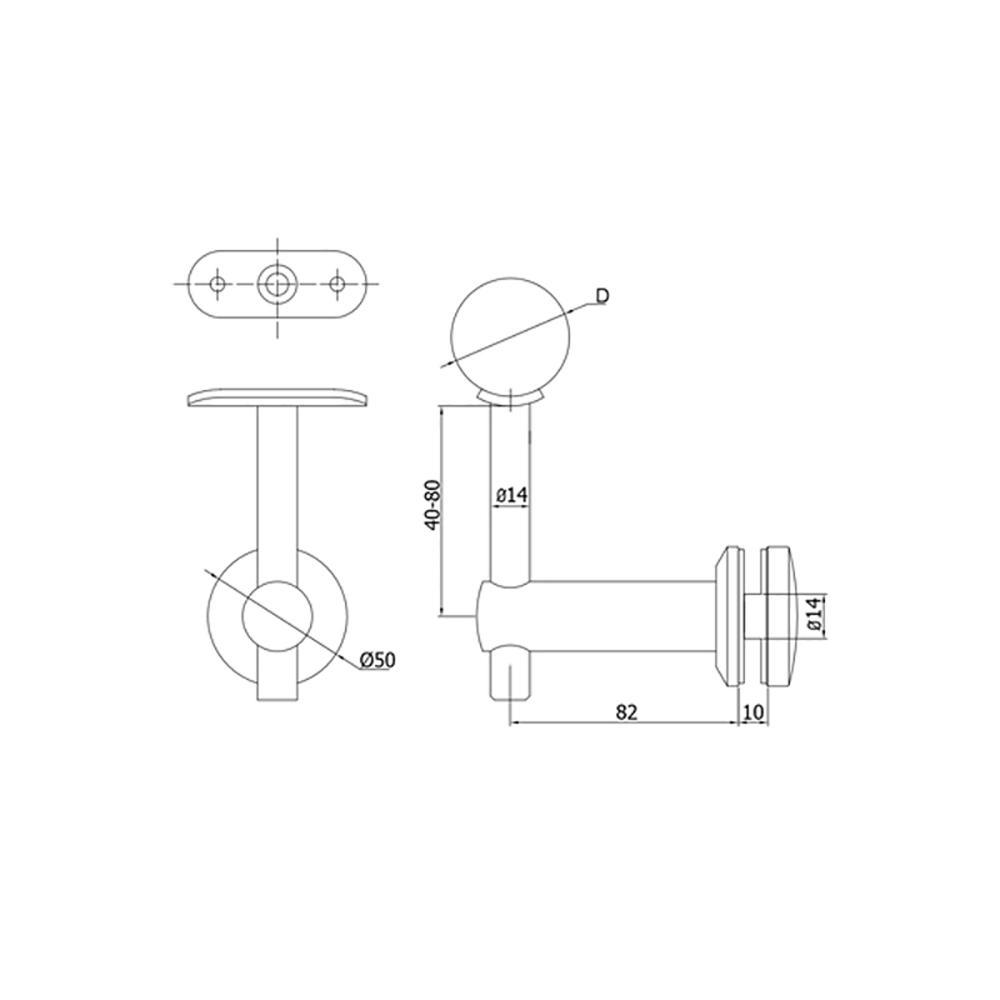

• Fits 42.4 mm (1-2/3 in.) diameter round tube handrail
• Glass Mounted Handrail Support Bracket – Adjustable Angles
• Mounts 1/4 in. up to 1/2 inch thick glass
• 304 Stainless Steel – 240 grain satin polish
• Flat Saddle Sold Separately – Part # AX10.005.025.A.SP
• Special Tool Required for Installation – Spanner Wrench – Part # AX30.070.530 – This is used to torque / tighten the clamp to glass.
• Screws Required – Sold Separately
  • Wood Screw, saddle to wood rail – Part # AX00.091.540.A.SP
  • Metal Screw, saddle to metal rail – Part # AX00.091.250.A.SP
